Sweep Rigger
Description
Precision-engineered sweep rigger for pair, four and eight configurations. Built to withstand the high lateral loads of sweep rowing.
Order Reference

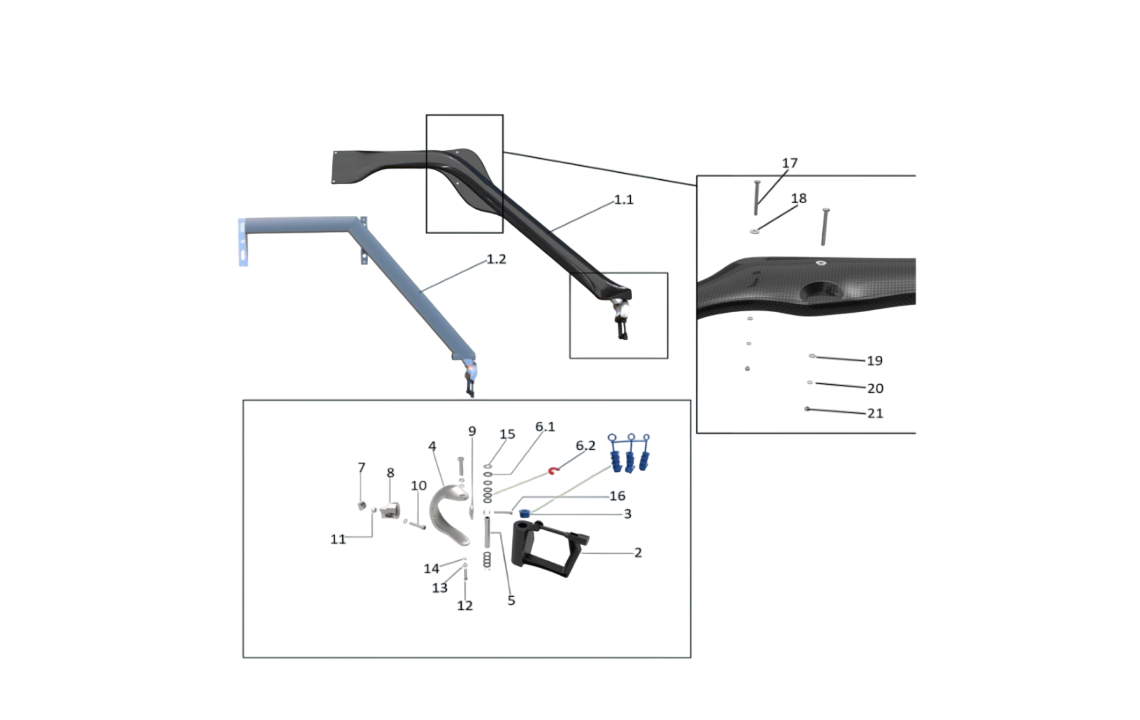

| Ref | Code | Description | |
|---|---|---|---|
| 1.1 | 104008 | Sweep carbon reverse riggers complete with hilts, pins and oarlocks | Add to Quote |
| 1.2 | 104007 | Sweep Aluminum reverse riggers complete with hilts, pins and oarlocks | Add to Quote |
| 2 | 104044 | Oar lock for Sweep riggers | Add to Quote |
| 3 | 104049 | Inclination adjust sweep | Add to Quote |
| 4 | 104035 | C-Bracket for sweep reverse rigger | Add to Quote |
| 5 | 104046 | Pin for oar lock for reverse rigger | Add to Quote |
| 6.1 | 104060 | Black Washer for the pin 1mm | Add to Quote |
| 6.1 | 104061 | Black Washer for the pin 2mm | Add to Quote |
| 6.1 | 104062 | Black Washer for the pin 3mm | Add to Quote |
| 6.2 | 104051 | Red open washer for the pin 2mm | Add to Quote |
| 6.2 | 104053 | Red open washer for the pin 3mm | Add to Quote |
| 6.2 | 104053 | Red open washer for the pin 6mm | Add to Quote |
| 7 | 104041 | Fixing nut for C-Bracket Pin M8 | Add to Quote |
| 8 | 104038 | Hilt holder for C-bracket | Add to Quote |
| 9 | 104040 | Washer for scull hilt blocking | Add to Quote |
| 10 | 106039 | Hex socket bolt round head M8×30 | Add to Quote |
| 11 | 106040 | Hex nut M8 | Add to Quote |
| 12 | 106037 | Hex Bolt M8×25 | Add to Quote |
| 13 | 106041 | Spring Washer M8 | Add to Quote |
| 14 | 106042 | Washer M8 | Add to Quote |
| 15 | 104048 | Pin Washer sweep | Add to Quote |
| 16 | 106037 | Hex Bolt M8×25 | Add to Quote |
| 17 | 106024 | Hex Bolt M6×70 for Carbon riggers | Add to Quote |
| 17 | 106024 | Hex Bolt M6×35 for Aluminum riggers | Add to Quote |
| 18 | 106036 | Washer M6 (big) | Add to Quote |
| 19 | 106035 | Washer M6 | Add to Quote |
| 20 | 106034 | Spring washer M6 | Add to Quote |
| 21 | 106033 | Hex Nut M6 | Add to Quote |
Need the Sweep Rigger?
Contact our team for pricing, availability and bulk orders.
